Linear Stage Actuator 1605 Ball Screw 4 inch 100mm Stroke Linear Slide Motion with NEMA23 57mm 3Nm Closed Loop Stepper Motor & Driver Kit for CNC/Laser
$90.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by rafys.net
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
Product details
| Management number | 211201798 | Release Date | 2026/04/04 | List Price | $36.00 | Model Number | 211201798 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

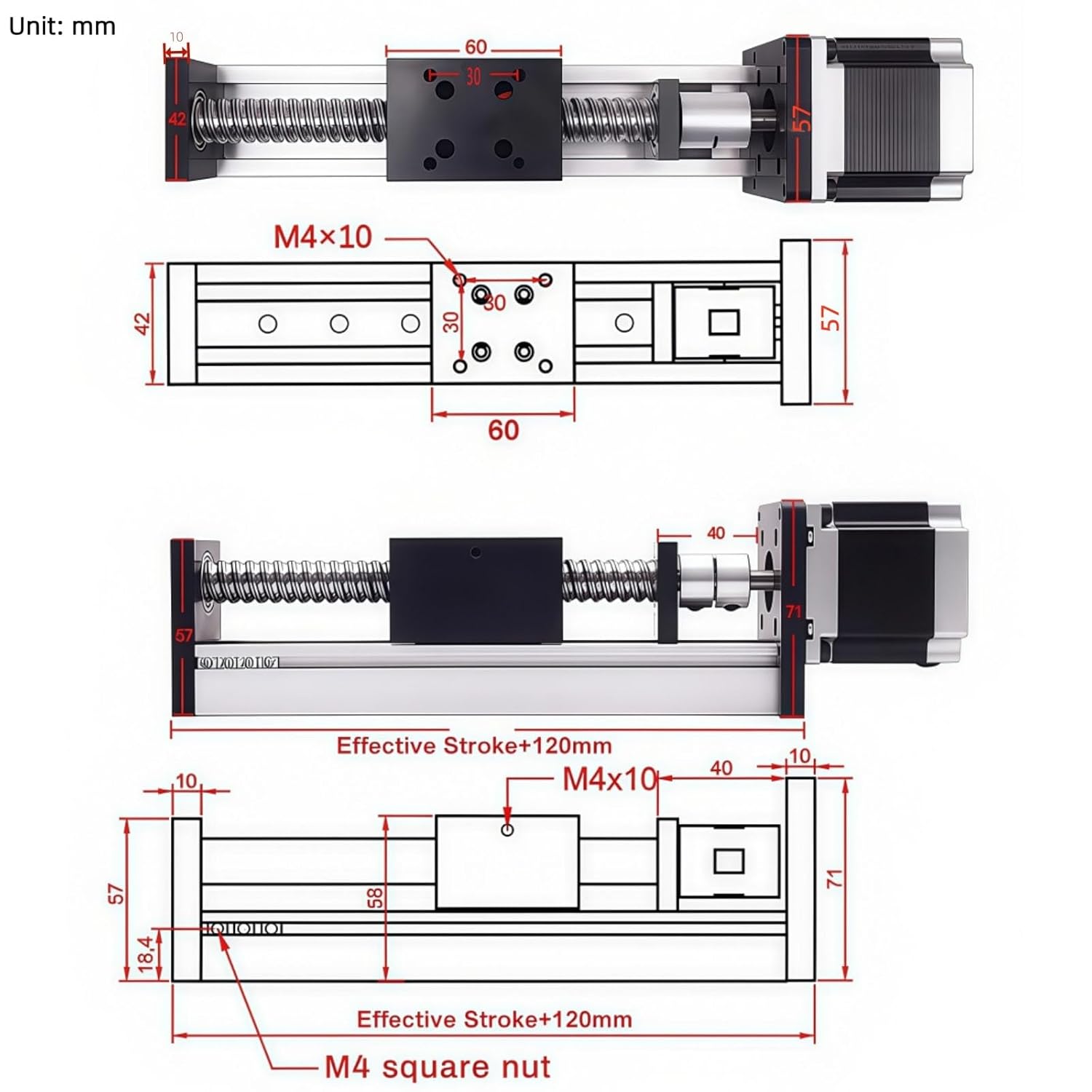

- Linear Slide Actuator: 4 inch (100mm) Stroke, 1605 Ballscrew. Ball screw linear rail Screw precision grade: C7, accuracy up to ±0.02mm. Linear Stage Table Horizontal loading capacity up to 45 pound / 20kgs.
- Advantages: Ready-to-Run: 1 x Linear stage actuator, 1 x Closed loop stepper motor, 1 x Nema 23 57mm motor driver. Closed-loop stepper motor system eliminates step loss. Encoder technology enhances motor precision, boosting the reliability, accuracy, and efficiency of the entire motion system.
- Specifications of Motor: Holding Torque: 3Nm / 300Ncm 428 oz.in; Current: 3A; Phase: 2; Motor Length: 2.24x2.24x4.41 inch (57x57x118 mm); Step Angle: 1.8 degree; Motor Lead Wire: 4-wire; Encoder: 1000 lines.
- Parameter of Closed Loop Stepper Motor Driver: Type: DSP Closed loop stepper drive; Maximum peak current: 13A; Input Voltage: 24-80VDC; Micro-stepping driver: 200~25600 ppr.
- Widely used: Nema 34 closed loop stepper motor kit can be applied to all kinds small and medium-sized automation equipment and instrument,such as 3D printer, small CNC machine, milling machine, carving machine, automated inspection equipment, precision assembly, laser engraving, special industrial sewing machine, stripping machine, marking machine, graph plotter, cnc machine, automatic assembly equipment,automation application and so on.
| Brand Name | TOSEASTARS |
|---|
